Inflation Pressure
35 PSI
Deflated Length
13 in. (330 mm)
Bypass Diameter
1-1/2 in. F
Deflated Diameter
5 in.
Inflation Thread
1/4 in.
Nominal Size
6 in. – 8 in. (150-200 mm)
Usage Range
5.50 in – 8.35 in. (133-212 mm)
Chain Eye Bolts
3/8 in. (1)
Weight
6 Ibs
Nominal Min
6
Nominal Max
8
Brand
Cherne
Maximum Back Pressure
17 psi (1,2 bar)/40 ft. (12m)
Product Type
Multi-Size Underground Muni-Ball
Plug Type
Bypass Plug
Purchase Type
For Sale or Rent
35 PSI
13 in. (330 mm)
1-1/2 in. F
5 in.
1/4 in.
6 in. – 8 in. (150-200 mm)
5.50 in – 8.35 in. (133-212 mm)
3/8 in. (1)
6 Ibs
6
8
Cherne
17 psi (1,2 bar)/40 ft. (12m)
Multi-Size Underground Muni-Ball
Bypass Plug
For Sale or Rent

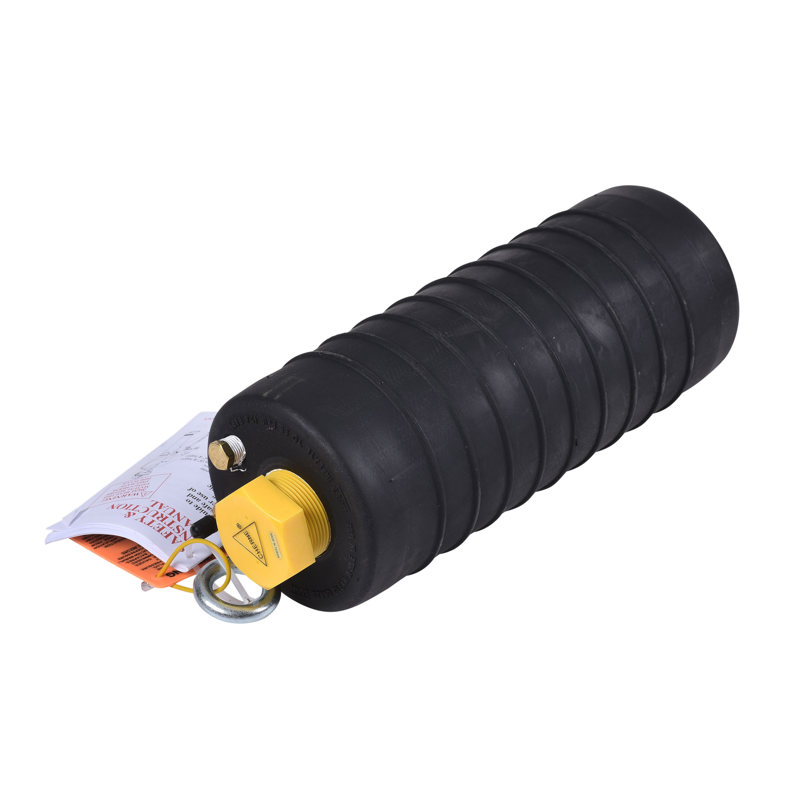

Cherne 6 in. – 8 in. Muni- Ball Plug 1-1/2 in. Bypass
Cherne® Underground Muni-Ball® Plugs offer a full bypass, allowing both testing and monitoring of piping systems. These plugs are ideal for installation and repair of residential or commercial piping systems. Cherne Industries is a global leader in pipe plugs and testing.
One plug fits multiple pipe diameters.
Made of natural rubber for excellent expansion and memory
Seals both round and out-of-round pipe
Removable inflation valve can be replaced if damaged or replaced with quick disconnect fitting
Use to block flow or as a back plug for sewer air testing
